Description

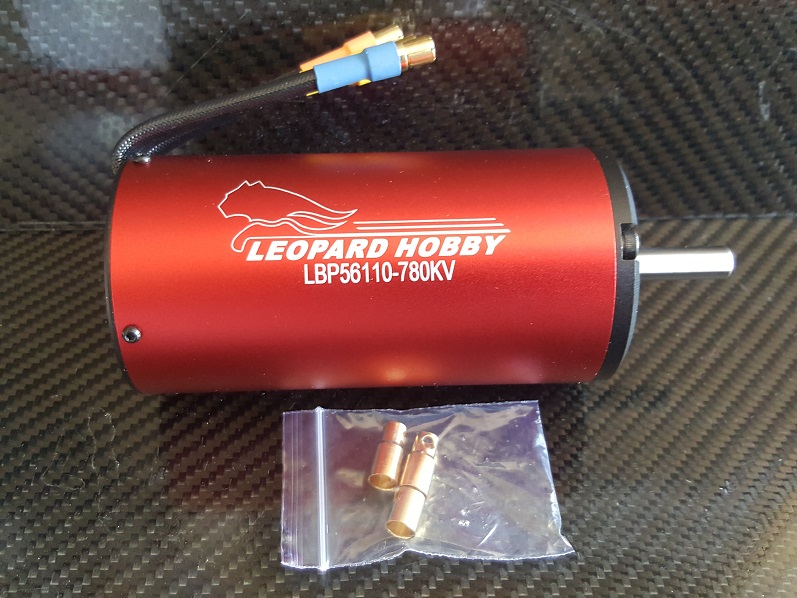

| LEOPARD Moteur Brushless 4 Poles 56-110mm LBP56110-780 KV | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| LBP 56110 Series (Diameter × Length：Φ55.8mm×110mm) | ||||||||||
| Model | Max Amps | Max Voltage | Max Power | KV (RPM/Volt) | Resistance | No-load Current (15V) | Mounting hole depth | Length of extend Shaft | Shaft Diameter (mm) | Weight |
| LBP56110/2Y | 170A | 44V | 7600W | 780KV | 0.0072 | 3.7A | 8mm | 30MM | Φ8.0 | 1160g |
| LBP561103Y | 113A | 67V | 7600W | 520KV | 0.0152 | 2.1A | 8mm | 30MM | Φ8.0 | 1160g |
| LBP56110/4Y | 82A | 92V | 7600W | 380KV | 0.0265 | 1.8A | 8mm | 30MM | Φ8.0 | 1160g |
| LBP56110/2D | 300A | 24V | 7600W | 1430KV | 0.0027 | 7.4A | 8mm | 30MM | Φ8.0 | 1160g |
| LBP56110/3D | 210A | 36V | 7600W | 950KV | 0.0055 | 4.3A | 8mm | 30MM | Φ8.0 | 1160g |
| LBP56110/4D | 158A | 48V | 7600W | 720KV | 0.0092 | 3.1A | 8mm | 30MM | Φ8.0 | 1160g |
