Description

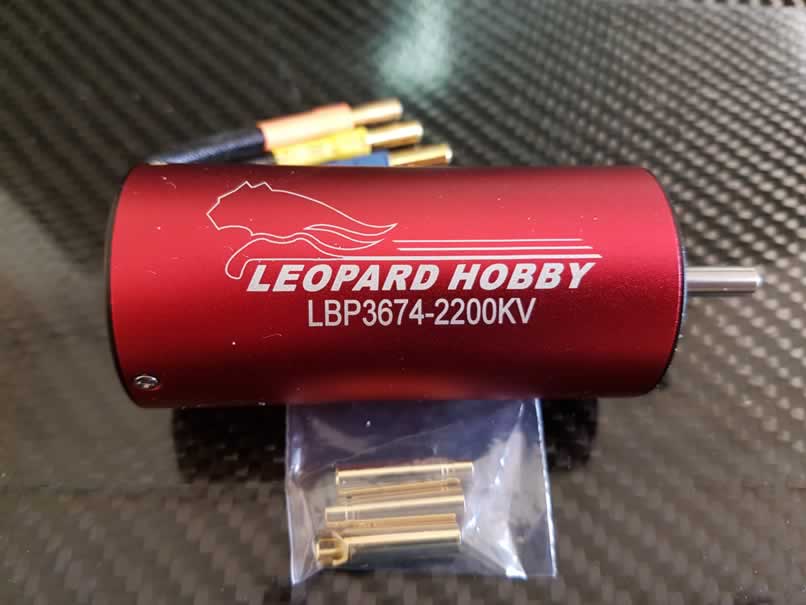

Moteur Brushless leopard 4 Poles 36-74mm LBP3674-2200 KV
| LBP3674 Series(Diametern × Length：Φ36.0mm × 74.0mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | Max Amps | Max Voltage | Max Power | KV (RPM/Volt) | Résistance | No-load Current (15V) | Mounting hole depth | Length of extend Shaft | Shaft Diameter (mm) | Weight |
| LBP3674/2D | 135A | 18V | 2400W | 3270KV | 0.0033 | 4.5A | 6mm | 20mm | Φ5.0 | 315g |
| LBP3674/2.5D | 110A | 22V | 2400W | 2650KV | 0.006 | 3.1A | 6mm | 20mm | Φ5.0 | 315g |
| LBP3674/3D | 90A | 27V | 2400W | 2200KV | 0.0066 | 2.7A | 6mm | 20mm | Φ5.0 | 315g |
| LBP3674/3.5D | 78A | 31V | 2400W | 1900KV | 0.0104 | 2.2A | 6mm | 20mm | Φ5.0 | 315g |
| LBP3674/2Y | 72A | 34V | 2400W | 1700KV | 0.009 | 2.3A | 6mm | 20mm | Φ5.0 | 315g |
| LBP3674/4D | 70A | 35V | 2400W | 1650KV | 0.0115 | 1.8A | 6mm | 20mm | Φ5.0 | 315g |
| LBP3674/4.5D | 60A | 40V | 2400W | 1470KV | 0.0164 | 1.4A | 6mm | 20mm | Φ5.0 | 315g |
| LBP3674/2.5Y | 58A | 42V | 2400W | 1400KV | 0.0153 | 1.8A | 6mm | 20mm | Φ5.0 | 315g |
| LBP3674/5D | 56A | 44V | 2400W | 1300KV | 0.0175 | 1.6A | 6mm | 20mm | Φ5.0 | 315g |
| LBP3674/5.5D | 50A | 48V | 2400W | 1200KV | 0.0235 | 1.1A | 6mm | 20mm | Φ5.0 | 315g |
| LBP3674/3Y | 50A | 48V | 2400W | 1180KV | 0.0181 | 1.4A | 6mm | 20mm | Φ5.0 | 315g |
| LBP3674/6D | 48A | 51V | 2400W | 1100KV | 0.0252 | 1.2A | 6mm | 20mm | Φ5.0 | 315g |
| LBP3674/3.5Y | 42A | 58V | 2400W | 1000KV | 0.029 | 1.1A | 6mm | 20mm | Φ5.0 | 315g |
| LBP3674/4Y | 36A | 68V | 2400W | 860KV | 0.0334 | 0.8A | 6mm | 20mm | Φ5.0 | 315g |
